Sliding Doors

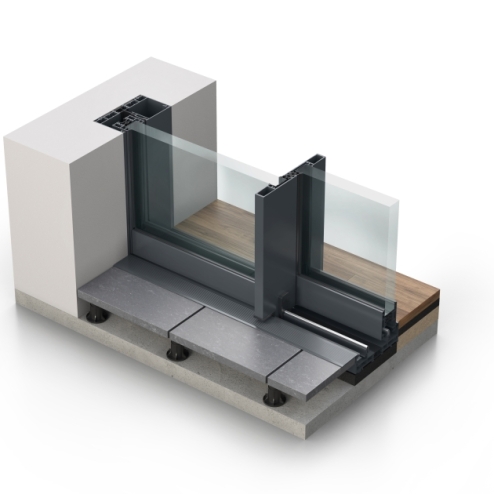

The SC140TT is a 140 mm thermally broken sliding system for windows and doors, also suitable for the realization of lift and slide solutions.

The series is designed for the construction of high-quality frames.

The lift and slide mechanism, designed to facilitate the movement of heavy frames up to 400 kg, makes this system very practical and functional.


Design features

  • The retention brushes are in high-density propylene with central water stripping.
  • Die-cast metal roller with reinforced polyamide wheels and ball bearings.
  • Maximum load : 300 kg/sash (up to 400 kg/sash with additional trolley)
  • Glass thickness : 10 mm to 40 mm(Double or Triple)


  • A wide range of solution is available
  • Low threshold option for unimpeded access through the door
  • Dual color available.
  • All finishes available. Customized finishes on request suited for high resistance to agressive environments.
  • Windows, balcony-doors
  • 2-3-4-6 sashes movable on two or three tracks
  • Sliding or lift & slide
  • Sliding and Fixed Combination
  • Fixed + sliding sash window
  • Motorized (optional)

Application type

Residential sector for the construction of balcony doors for villas, apartments and towers.

Uw value W/m²K (Double glazing) : 1,7
Uw value W/m²K (Triple glazing) : 1,2
Uf value W/m²K : 3,5
AWW Classification : 4 / 8A / A4
Size limits
Max glass thickness (mm) : 40
Max sash width (mm) : 2500
Max sash height (mm) : 2800
Maximum sash load (kg) : up to 400 kg
