CATEGORY

Casement Windows

Description

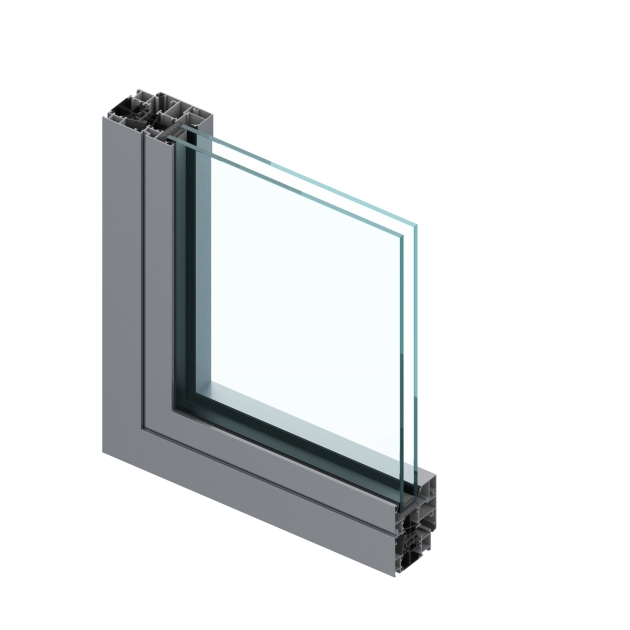

The latest line of high-performance windows comes in three levels of thermal insulation — High, Top, and Extra — offering tailored solutions for every market requirement. By pairing innovative locking systems with the new aK hinges, which are also available in a concealed version allowing up to 180° opening, the C67K window system delivers enhanced security, dependable functionality, and a clean, contemporary design.

The thermal break bars are made using recycled materials, cutting down on the consumption of virgin resources. This sustainable approach helps minimize waste and lowers emissions tied to the production of new raw materials.

  • OVERVIEW
  • TECHNICAL DATA
  • DOWNLOAD COLLATERAL

Design features

  • Flat, rounded, chamfered profiles
  • Anti-burglary system
  • Open joint sealing technology to achieve exceptional thermal and acoustic performance
  • Integrable with roller shutters and mosquito nets

Options

Internal opening

Tilt/turn

Vasistas

Overlight and underlight

Application type

A versatile and complete system, adaptable to any type of use.

It is ideal for both residential and non-residential sectors: apartments, villas, hospitals, schools, public, industrial or commercial buildings.

New and Renewal.

  C67K
Size limits
Max glass thickness (mm) : 62
Max sash width (mm) : 1300 mm
Max sash height (mm) : 2500 mm
Maximum sash load (kg) : 150 kg
