C77K-CS Windows with hidden sash

CATEGORY

Casement Windows

Description

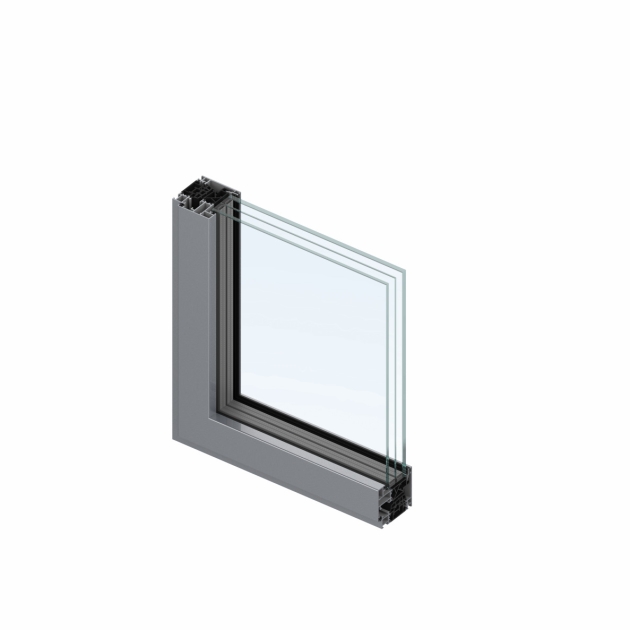

A hidden sash window refers to a system where the sash — the movable part of the window — is completely concealed behind the fixed frame. This design increases the glass surface area by minimizing the visible aluminum profile.

Ideal for both new construction and renovation projects, this solution supports a wide range of applications and features one of the slimmest visible sections on the market, with a side node of just 74 mm. Despite its minimalist look, it delivers excellent performance, security, and ease of operation, and enables the creation of large glazed surfaces.

  • OVERVIEW
  • TECHNICAL DATA
  • DOWNLOAD COLLATERAL

Design features

  • Suitable for the new construction and redevelopment market
  • Multiple locking points

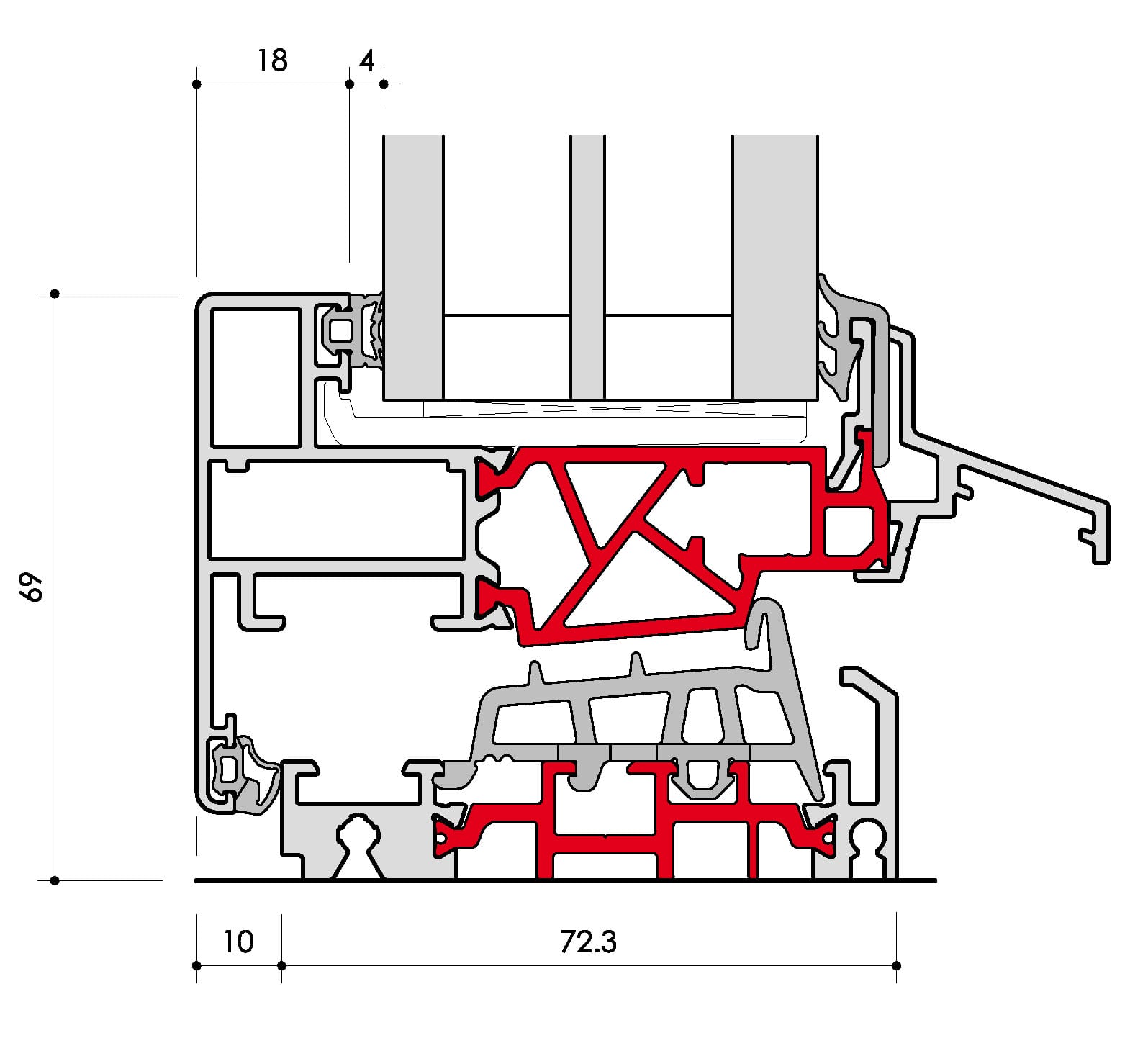

  • Lowered threshold for access for people with reduced mobility
  • Traditional or hidden hardware
  • RC2 burglar-proof system
  • New range of NOVAE handles
  • Surface finish of your choice

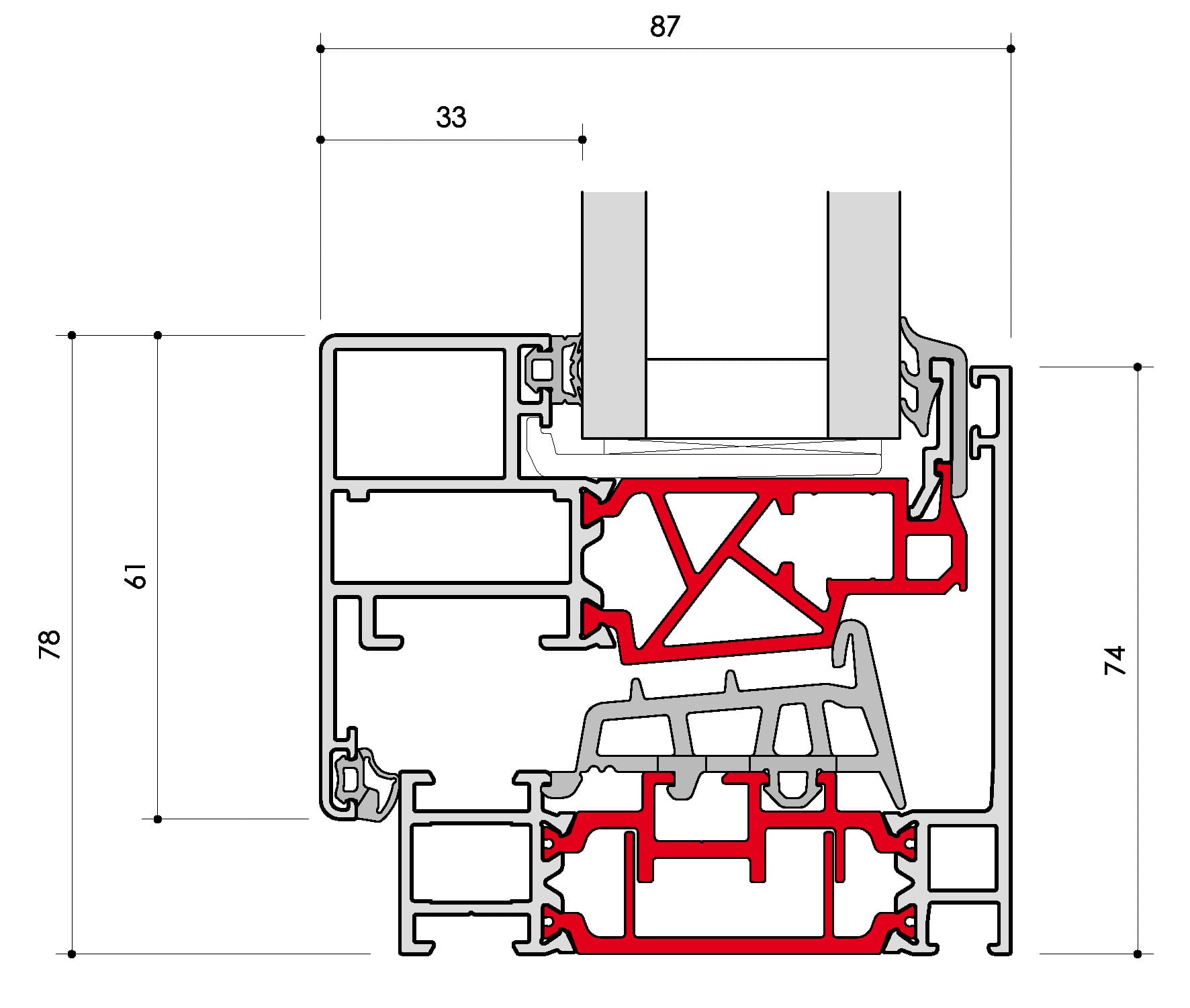

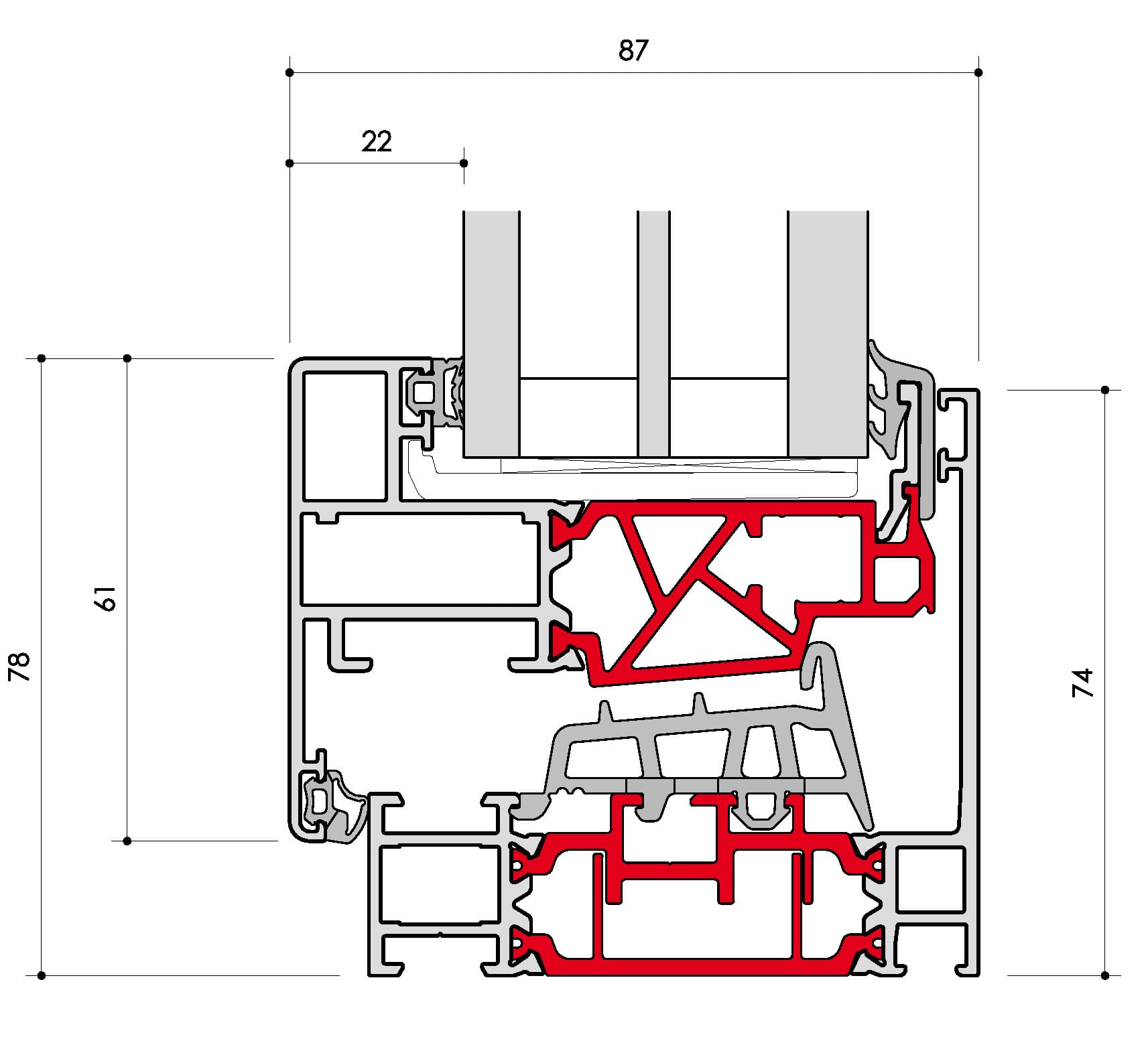

  • Uw = 0.8 W/m2K (triple glazing); Uw = 1.2 W/m2K (double glazing)
  • Open joint sealing technology to achieve exceptional thermal and acoustic performance
  • Integrable with roller shutters and mosquito nets

Options

  • Opening types: 1-leaf window, 2-leaf window, vasistas
  • Hardware for swing, tilt and turn opening
  • Exposed or hidden locking hardware
  C77K-CS Windows with hidden sash
Size limits
Max glass thickness (mm) : 52mm
Max sash width (mm) : 1500mm
Max sash height (mm) : 2600mm
Maximum sash load (kg) : 150 kg
