INFINEO C67K-M

CATEGORY

Casement Windows

Description

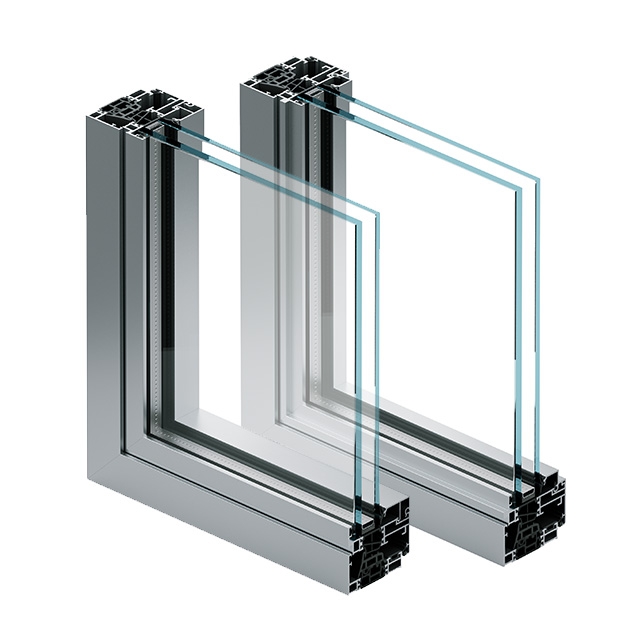

The Infineo C67K-M swing series is engineered for high-performance applications, supporting substantial sizes and weights while delivering excellent thermal and acoustic insulation, air permeability, and water tightness. It features a slim visible profile, with approximately 65 mm sightlines for the outer frame and a reduced central mullion using the T+Z configuration.

Due to the compact profile dimensions, the system is compatible exclusively with concealed hinges from the “K” accessories range.

  • OVERVIEW
  • TECHNICAL DATA

Design features

  • Windows and balcony doors
  • Minimal frontal display
  • Doors up to 150 kg
  • High insulation performance
  • Only with hidden hinges for an even more minimal line
  • Available with "Standard Line" and "Iron Line" appearance
  • Small central node
  • New range of NOVAE handles
  • Surface finish of your choice
  • Uw = 0.90 W/m2K (triple glazing); Uw = 1.24 W/m2K (double glazing)
  • Water permeability Class E1500 (1500 Pa)
  • Wind resistance Class C5
  • Acoustic performance up to 48 dB (double glazing) Pending certification
  • Open joint sealing technology to achieve exceptional thermal and acoustic performance
  • Available for single and two-tone, painted, anodized and sublimation windows

Options

  • Tilt-and-turn opening
  • Vasistas opening
  • Overlight and underlight
  • Available with low threshold
  INFINEO C67K-M
Size limits
Max glass thickness (mm) : 52mm
Max sash width (mm) : 1530mm
Maximum sash load (kg) : Doors up to 150 kg
